SROA46 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video

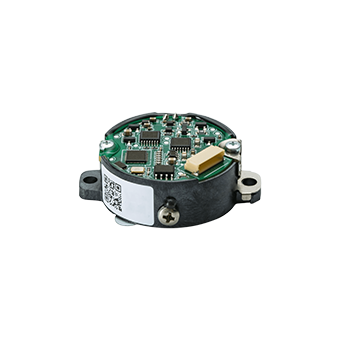

The SROA46 split-type optical encoder is an absolute rotary encoder with precise counting. It is suitable for applications where the motor size is compact but high precision is still required.

Product characteristics

Ultra-thin design of 15.5mm, installation completed in 80 seconds, no calibration required.
Repeatability < ±5 arcseconds.
RS485 interface, compatible with multiple communication protocols.
Bidirectional asynchronous serial communication, 17bit per revolution (up to 23bit), 16bit for multi-turn.
Communication cable can reach up to 50 meters in length.
Rigorous EMC testing to meet harsh electromagnetic environment conditions.

Product advantages

Ultra-thin design with integrated installation.
Rigid connection without springs, providing better system rigidity.
One-click debugging, saving time and effort.

Technical specifications
System
Resolution Single-turn: 17/23bit；Multi-turn: 16bit
Communication Specification RS485
Baud Rate 2.5Mbps
Signal Format Serial Communication Protocol
Electrical
Supply Voltage 5 V ± 5%
Main power supply current consumption (typical) 72mA
Differential Output Level High level≥3.5V; Low level≤1.7V
Insulation Resistance 50MΩ
Edge Change Time 100ns
Environment
EMC Features IEC61000-4
Operating Temperature -20℃~105℃
Humidity ≤90%(40℃/21d, based on EN60068-2-78); No Condensing
IP Rating —（Motor Rear Case Protection）
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
Split-type single-turn absolute rotary encoder SROA35 & SROA46 Series Specification V3.2
Split-type Multi-turn Absolute Rotary Encoder SROA35 & SROA46 Series Specification V3.3
3D Model
【整機】SROA46分體式光電編碼器(A00)
