KIN60 Series

Summary

Technical specifications

Application

Related products

Download

Back

Summary

Gallery

Video

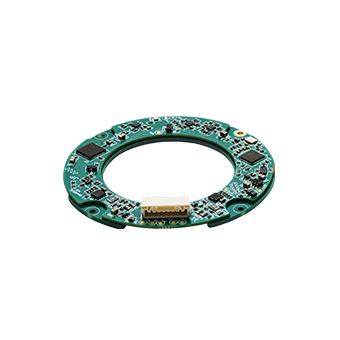

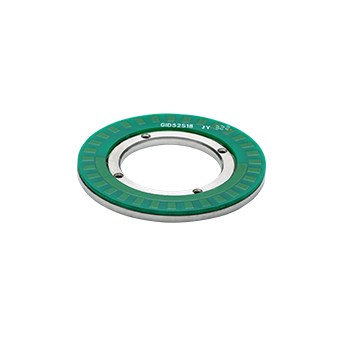

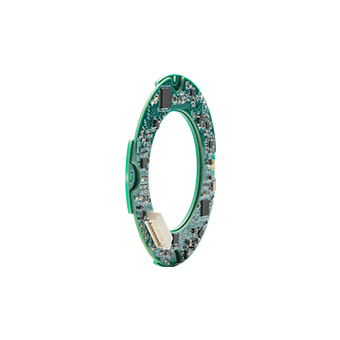

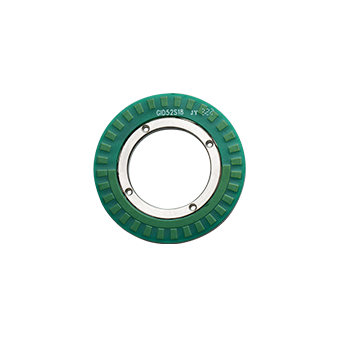

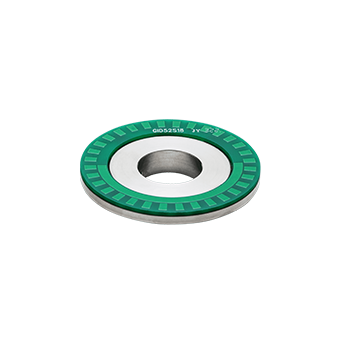

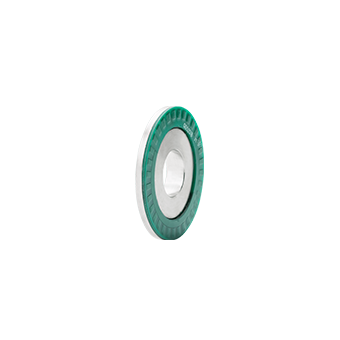

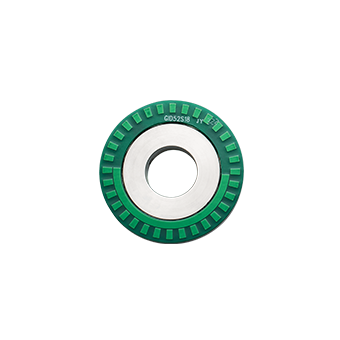

The KIN60 inductive hollow encoder is an absolute rotary encoder, offering precise counting and stable operation. It supports interfaces such as RS485, SPI, and BISS, and is widely used in applications including collaborative robots, gimbals, servos, and machine tools.

Product characteristics

High rel iabi l ity, impervious to contamination, unaffected by strong magnetic fields;

High precision, with repeatability reaching up to ±3";

Distributed induction read head design, allowing for greater installation tolerance and reducing the impact of installation tolerances on accuracy.

Product advantages

Non-contact installation;
Ultra-thin structural design;

Conquer Challenging Environments;

Off-axis Advantages and Multi-Scenario Applications.

Technical specifications

System

Resolution	多圈16位，單圈17—23位
Communication Specification	RS485、SSI、BISS-C
Baud Rate	RS485：2.5Mbps；SPI：3Mbps；SSI：2Mbps；BISS：10 Mbps
Signal Format	Serial Communication Protocol

Electrical

Supply Voltage	5 V ± 5%
Main power supply current consumption (typical)	150mA
Differential Output Level	High level≥3.5V; Low level≤1.7V
Insulation Resistance	50MΩ
Edge Change Time	100ns

Environment

EMC Features	IEC61000-4
Operating Temperature	-40℃~85℃
Humidity	IEC61000-4
Shock	Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration	The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
