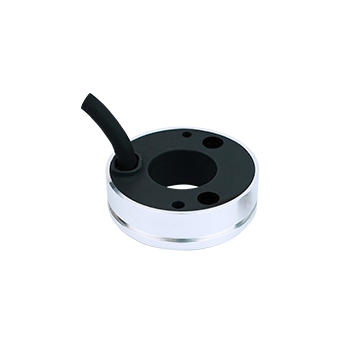

XIN52 High Performance Encoder
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Single-turn 17-bit absolute position signal output  without the need for an external decoder;

Fully sealed design, suitable for various harsh  environmental conditions;

Large installation tolerance, with axial movement  tolerance of ±0.25mm and radial movement tolerance  of ±0.1mm.







Technical specifications
System
Communication Specification RS485
Resolution 17bit
Baud Rate 2.5Mbps
Communication Frequency ≤16kHz
Electrical
Supply Voltage 5V±5%
Differential Output Level High leve ≥3.5V；Low level≤1.7V
Environment
EMC Features IEC61000-3
Operating Temperature -40℃~125℃
Shock Impact acceleration 980m/s2 ，11ms； 3 times per direction, total 18 times
Vibration The amplitude is 1.5mm between 10 ~ 55Hz; Acceleration of 98m/s2 between 55~2000 Hz ; 2 hours per axial (XYZ)
Specification
